HOME >Product>Corrugated board >Endless felt for Belt Type Single Facer

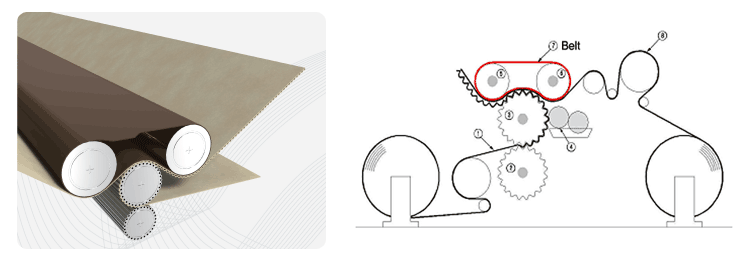

A single facer is a machine that produces single faced corrugated boards from a corrugating medium and liner web during the first production process of a corrugating machine that produces corrugated borard sheets.


Material Special fiber+ Teflon
Working Temperature 220”
Property 0.1~0.2% Elongation at 150kg/cm
Dimension

, Width                        : < 3,000mm
, Inner Circumference   : 2,650 ~ 5,000mm
, Thickness                 : 2.5~3.5mm

Advantage

, No press marks
, High speed and quality
, Cost reduction
, Low noise

Remark

Optical and Magnetic senor available
